Cost effective implementation Gitlab Runners Autoscale on Exoscale

Feb 18, 2018 . 2 mins read

Gitlab impresses with its features over the time. I recently learned that gitlab-runner does a surprising task which I underlooked and been bugging me for a long time.

When Gitlab tweeted about a pool to support of AWS infrastructure, I was wondering it’s going to develop a module in gitlab-ce. To my surprise gitlab-runner already supports load balancer kind of support.

Hope that you have the minimum knowledge about the runners in gitlab. So, I focussed on implementaion of runners or instances at Exoscale.

Know more about the Git-Lab runners here

What is Exoscale?

Exoscale is an Swiss Cloud Provider. It provides everything for cloud native applications with high performance and cost effective. The best part is it provides autoscaling instances on demand and managing them smartly.

Runner Configuration

The following configuration can be used as a template or pattern to configure your runner. Don’t forget to add your sensitive authentication details like tokens and keys provided by Exoscale.

concurrent = 5
check_interval = 0[[runners]]
  name = "runner"
  url = ""
  token = ""
  executor = "docker+machine"
  [runners.docker]
    image = "alpine:latest"
    volumes = ["/cache"]
  [runners.cache]
    Type = "s3"
    ServerAddress = "sos-ch-dk-2.exo.io"
    AccessKey = ""
    SecretKey = ""
    BucketName = "runners-cache"
  [runners.machine]
    IdleCount = 0
    IdleTime = 600
    MaxBuilds = 100
    MachineName = "auto-scale-%s"
    MachineDriver = "exoscale"
    MachineOptions = [
        "exoscale-api-key=",
        "exoscale-api-secret-key=",
        "exoscale-availability-zone=ch-dk-2",
        "exoscale-disk-size=10",
        "exoscale-image=ubuntu-16.04",
        "exoscale-instance-profile=micro"
    ]
   [runners.machine]
    IdleCount = 0
    IdleTime = 3600
    MaxBuilds = 100
    MachineName = "gitlab-runner-%s"
    MachineDriver = "exoscale"
    MachineOptions = [
        "exoscale-api-key=",
        "exoscale-api-secret-key=",
        "exoscale-availability-zone=ch-dk-2",
        "exoscale-disk-size=10",
        "exoscale-image=ubuntu-16.04",
        "exoscale-instance-profile=micro"
    ]

If you observe the configuration, The Idle Time is 3600 seconds which is 1 hour. The exoscale providers has hourly billing

I am using micro instance with 512MB RAM and 1 CPU Core which is sufficient to me.

Exoscale has 4 zones till now, there are 2 reasons to choose ch-dk-2

  • Hosted in Swiss
  • Exoscale object storage is stored in ch-dk-2

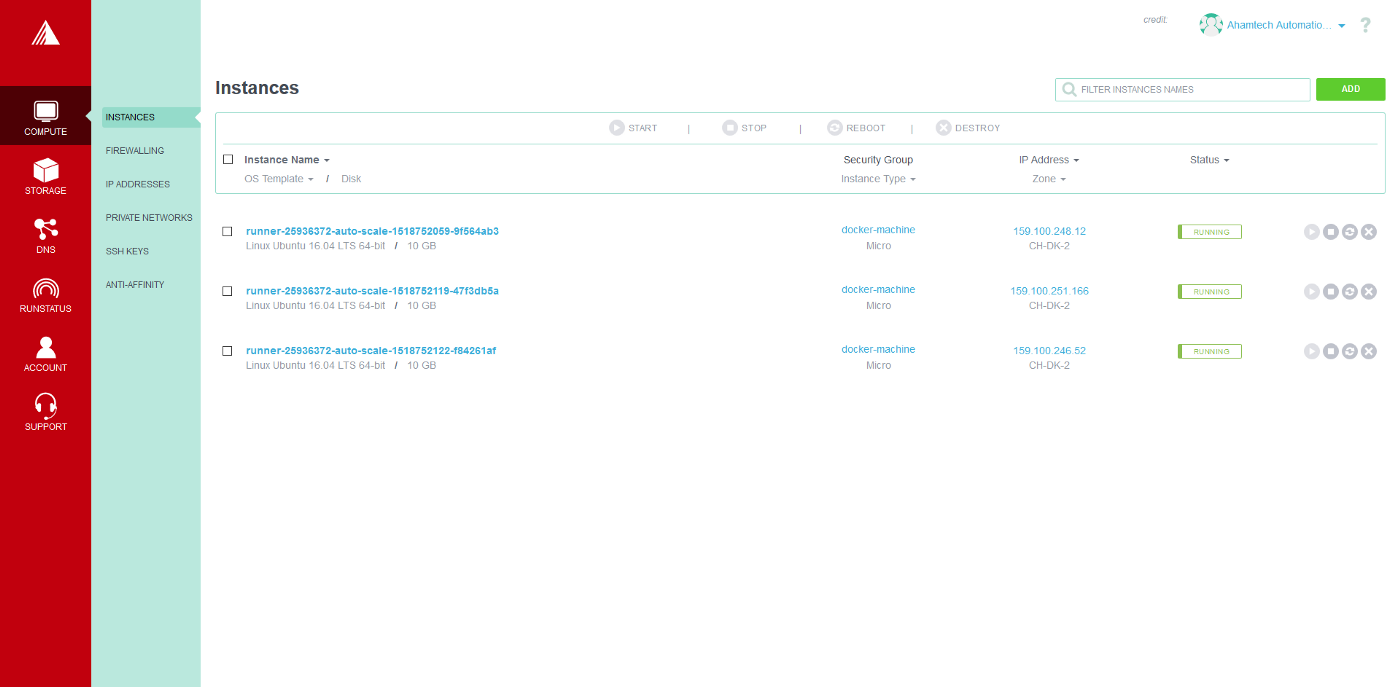

Once the GitLab runner is activated, instances are created on demand in similar manner. The following screenshot resembles the live instances

Instance Deletion

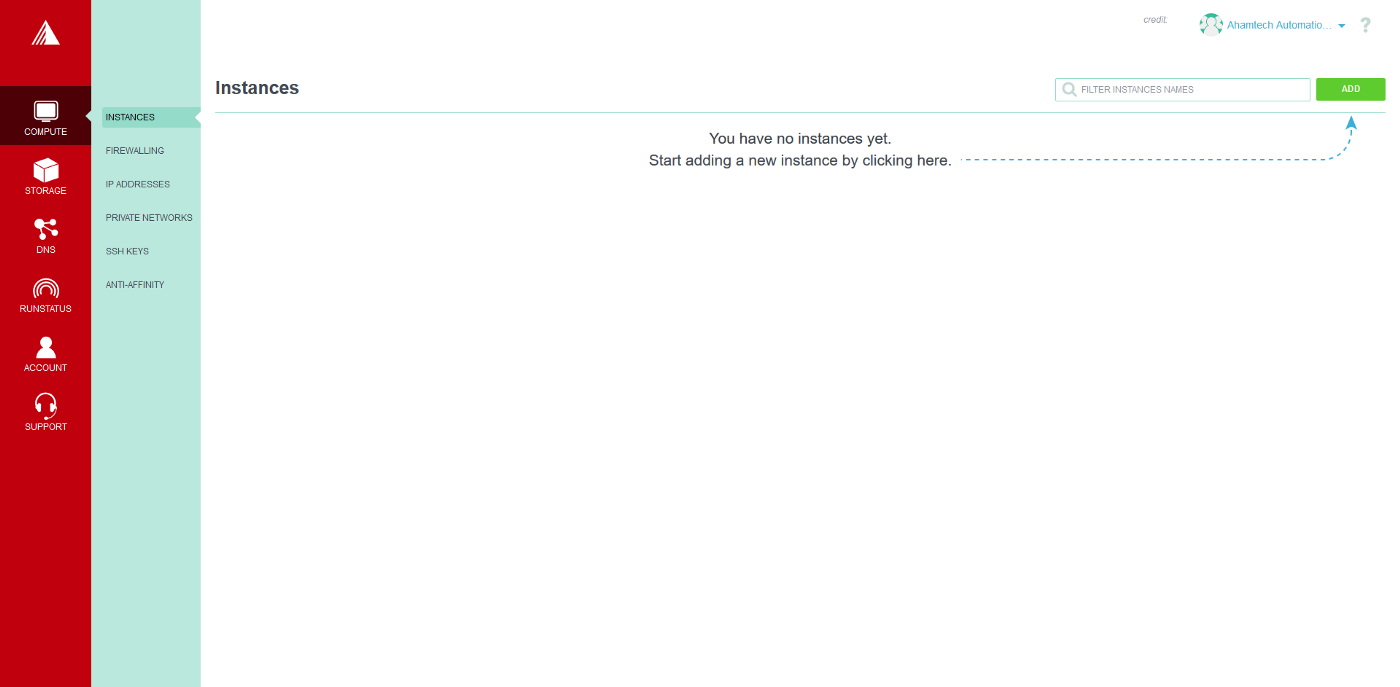

The runner instance is deleted after the time-out of IdleTime as mentioned in the runner config file.

Exoscale Dashboard

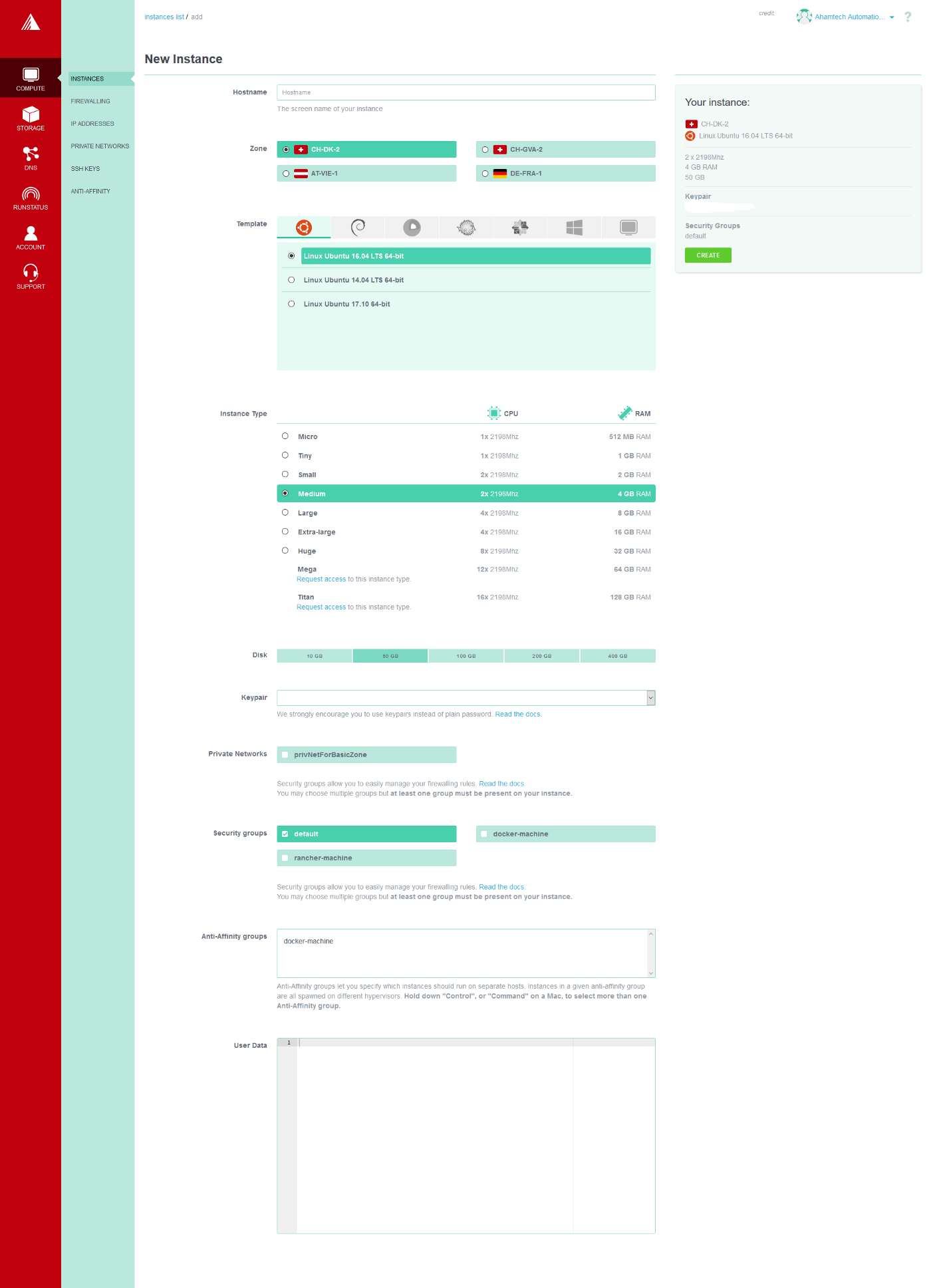

The Exoscale Dashboard comprises of clean user interface with vivid information. Check the following screenshot

Autoscale Downsides

  • Initialing Docker every time.
  • Installing from the scratch.

Positives AutoScale

  • GitOps made easy
  • Financially cheaper to the exisitng model.

Postivies ExoScale

  • Decent Hardware
  • Robust Privacy Policy
  • Relatively Cheaper to AWS (Depends on usage)
  • In-House S3 storage (NO Billing for API Calls)

Usage Costs

Micro Costs Instance Active concurrency Monthly Total
0.0076 EUR / hour 4 hours 5 25 days 3.8 EUR

Storage S3 API

Storage Tranfer (OUT)
0.0455 EUR / hour 0.0182 EUR/GB
Runner Cache Cost
1 GB 0.0455 EUR
Tranfer 5GB 0.091 EUR
Total ~ 0.15 EUR
Gitlab Registry Cost
1 GB 0.0455 EUR
Tranfer 5GB 0.091 EUR
Total ~ 0.15 EUR

Total of ~ 4 Euros

Downsides

  • Procooked ISO/ Snapshots are not yet available
  • ExoScale snapshots are limited to instances.

I belive that they are planning to implement this in future as mentioned in their blog post.

If precooked images are available, we can save the build time.
